Capacitance Level Transmitter Board
Description :
The H509 capacitive level transmitter board serves as the core component of a level gauge. It is a measuring instrument used in the construction of level gauges that are designed to determine the height of liquids or solid materials. This transmitter board is suitable for a wide range of industrial scenarios, including petroleum, chemical engineering, food, pharmaceuticals, water treatment, and natural gas industries.
Parameters
The high feauters of the transmitter board are listed below
- High Precision: Achieve high precision through Direct Digital Synthesis (DDS) technology.
- Full Isolation: With an isolation voltage of up to 1000VDC between the sensor and the main circuit.
- Wide Measuring Range: The H509 currently employs a capacitive measurement structure, with a measurement range of 50PF to 5000PF and a resolution of 0.002PF.
- 3 buttons complete all functions: It has a comprehensive three-button field calibration feature (compatible with two-button mode and supporting reed switches), enabling functions such as span, zeroing, damping, and data recovery.

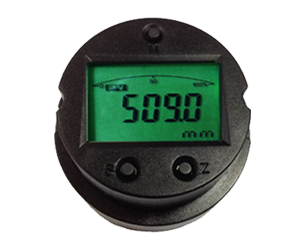

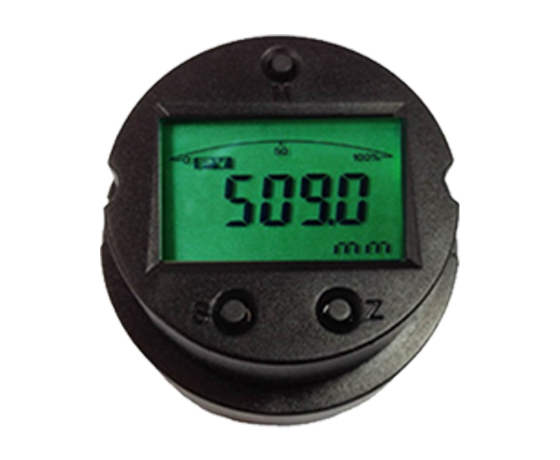

- Full-view LCD display: Equipped with an emerald green backlit multifunctional LCD display that can simultaneously display up to four variables and is rotatable by 360 degrees.
- Free of field maintenance: It possesses a complete data backup and recovery function
- long-term stability: The modular design ensures high reliability, consistency, and long-term stability of the product.
Main Features
| Features | Description |
| Output | 4 ~ 20mA signal output with HART (2-wire). |
| Self-test function | The current output will be 3.8mA or 22.0mA when detect fault. |
| Manufacturer trim | The calibration points can be from 2 to 15. |
| High and low trim | Two points trim. (Local Adjustment Function 9 and 10) |
| Local adjust functions | Setting range and PV unit, damping, data recovery etc. |
| LCD display | 360o rotation LCD display. |
| Restore factory settings | If the damping value entered is ‘05678’, it will automatically perform ‘restore factory settings. (Manufacturers need to perform ‘Data Backup’ operation.) |
Technical Specifications
| Items | Specifications |
| Power Supply | 9 – 32V DC(XF1) |
| Sensor Range | 40~6000 pf |
| Resolution | 0.002 pf |
| Operating Temperature | -20°C to +70°C (with backlit LCD display)
-40°C to +85°C (without LCD display) |
| Dimension | Diameter Φ= 62 mm
Mounting hole pitch D＝55 mm |
Ordering information
| Product Type | Part No. | Description | |
| Capacitive Level Transmitter Board | HART | H509 | Universal Capacitive Level Transmitter Board;
HART communication protocol; 3051 shell; Display screen. |
