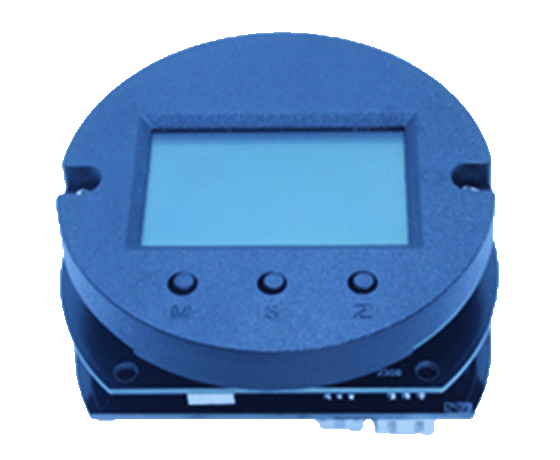

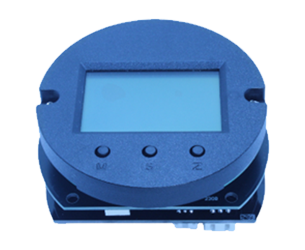

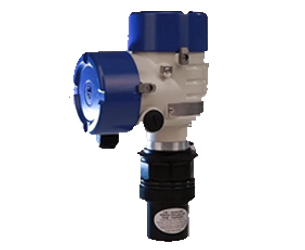

H760 series are positioned in the high-end intelligent product market and are widely used in the field of industrial automation, including chemical, oil and gas, food and beverage production, water and wastewater treatment, pharmaceutical, and environmental monitoring. They are suitable for various working environments, regardless of the type of liquid, the shape or material of the container, and can achieve millimeter-level measurement standards even under different temperature conditions.
Parameters
High-Performance Ultrasonic Technology: Provide a non-contact liquid-level measurement solution for industrial process control and monitoring.
Wide Range of Applications
Precision and Stability: High precision with a resolution of ≤3mm and are known for their stability in measurements.
Temperature Compensation: Built-in sound speed temperature compensation to ensure accuracy across different temperatures.
Versatile Communication Protocols: Support RS485 + Modbus RTU and capable of operating with sensors in the frequency range of 20KHz to 125KHz, with open channel users preferring sensors above 100KHz.
Sensor Disconnection Detection: Sensor disconnection detection, enhancing reliability and safety.
Customizable Display: 128×64 pixel LCD display, multiple variables including percentage, loop current, temperature, or distance.
Measurement Modes: Measure level, distance, or empty height, allowing for adjustment based on application requirements.
Robust Design: -20°C to 70°C (with LCD) and -40°C to 85°C (without LCD)
Main Features
| Features | Description |
| Output | supports sensors with a frequency range of 30~50KHz |
| Wide Sensor Compatibility | support sensors with frequencies ranging from 20 to 125KHz |
| Communication Protocols | 2-wire HART communication or RS485 communication. as well as PA communication |
| Three Buttons Calibration | enabling functions such as migration, range setting, zeroing, damping, and data recovery |
| Backlit LCD Display | simultaneously shows liquid level, temperature, signal status, and more |
| Automatic False Echo Suppression | fully automatic false echo suppression for high adaptability in the field |
| Sensor Disconnection Detection | supports sensor disconnection detection, including both the main sensor and the temperature sensor |
Technical Specifications
| Items | Specifications |
| Power Supply | 12 – 32V DC |
| Output | 4~20mA signal output with HART(2-wire) |
| Repeatability | ≤3mm or 0.2% of set measuring distance |
| Resolution | ≤3mm |
| Blanking Zone | 0.2~2m |
| Operating Temperature | -20°C to +70°C (with backlit LCD display)
-40°C to +85°C (without LCD display) |
| Dimension | Diameter Φ= 70mm
Mounting hole pitch D＝62mm |
Ordering information
| Product Type | Part No. | Description | |
| Ultrasonic Liquid Level Transmitter Board | HART | H760 | Ultrasonic Level Transmitter Board;
HART communication protocol; Display screen. |
