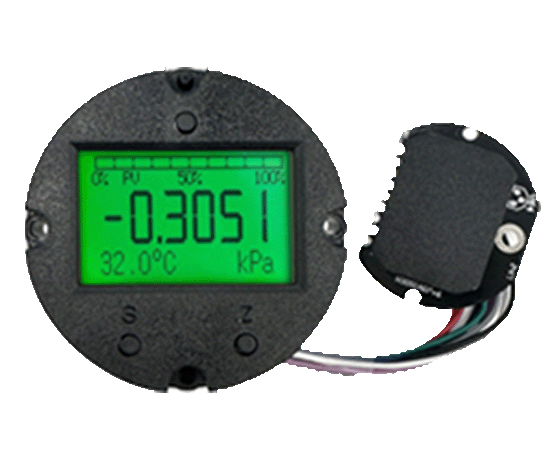

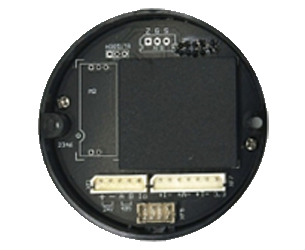

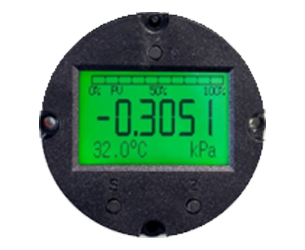

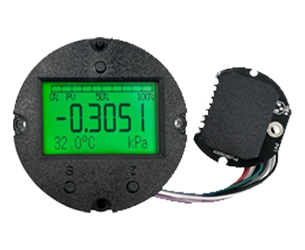

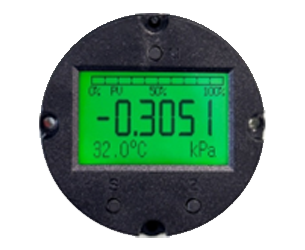

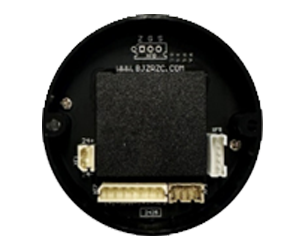

H3051 series pressure transmitter boards are widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter board is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC, control instrument etc.
Parameters
The main application scenarios of H3051 are as follows
| Domains | Scenarios |
| Industrial Automation | Pressure Measurement: Used to measure pressure in pipelines in industries like chemical and petroleum, and for liquid level and flow measurement too. |
| Equipment Monitoring: Helps monitor industrial equipment’s pressure to ensure stable operation. | |
| Environmental Monitoring | Weather: Applied in meteorological stations for atmospheric pressure monitoring. |
| Water Projects: Monitors water pressure in water conservancy facilities. | |
| Energy Management | Measurement: Measures pressure of energy media for consumption statistics. |
| Equipment: Monitors energy equipment’s pressure for normal operation. | |
| Intelligent Buildings | Systems: Controls HVAC and water systems by monitoring pressure. |
| Transportation | Automobile: Tests pressure in car components. |
| Rail: Monitors pressure in rail transit systems. | |
| Medical Equipment | Instruments: Serves as a pressure sensor in medical devices. |
| Gases: Ensures stable supply of medical gases by monitoring pressure. |
Main Features
| Features | Description |
| Flexible sensor configuration | HART-Tool configuration software can flexibly and conveniently configure the measurement range of sensors and the range of transmitter boards. |
| Flexible temperature compensation | Supports to set 2 to 11 temperature points and 1 to 15 pressure points at each temperature. The temperature compensation methods are highly flexible and can meet the different needs of users. For example, only compensating the zero point; compensating both the zero point and the range simultaneously; or compensating the zero point, the range and the linearity. |
| Strong on-site anti-interference capability | •Protected by conformal coating, which can effectively prevent the damage to the electronic components caused by the external environment.
•Equipped with anti-interference devices such as high-power TVS (Transient Voltage Suppressor) and magnetic beads internally, effectively suppressing various interferences on site. •The EEPROM has an enhanced anti-interference design and complete data backup and recovery functions, thoroughly realizing maintenance-free operation on site. |
| Intelligent Self-inspection | The software has the function of intelligent self-inspection, further ensuring high reliability on-site. |
| Useful Tools | •HART-Tool configuration software: For the configuration and debugging of transmitter boards. For small-batch production of transmitter boards, this software can also be used.
•HART intelligent transmitter board batch-production software: With dedicated tooling, it can simultaneously complete linearization, temperature compensation, configuration, etc. of multiple transmitter boards. |
Technical Specifications
| Items | Specifications |
| Power Supply | 10-32V DC |
| Output | 4~20mA signal output with HART(2-wire) |
| Damping | Adjustable from 0 to 32 seconds |
| Current Output Accuracy | ±0.075%F.S. |
| ADC Resolution | 24-bit |
| Output Rate (Frequency Response) | 10Hz |
| Temperature Compensation Points | 11 temperature points, and 11 pressure points at each temperature. |
| Blanking Zone | 0.2~2m |
| Operating Temperature | -30℃ to +70℃ (with LCD display)
-40℃ to +85℃ (without LCD display) |
| Storage Temperature | -40℃～+85℃ |
Ordering information
| Product Type | Part No. | Description | |
| Differential-Pressure Transmitter Board | HART | H3051S3 | Isolated Universal Differential-pressure Transmitter Board;
HART communication protocol; 3051 shell with a dot -matrix display screen. |
| Pressure Transmitter Board | HART | H3051T3 | Universal Bridge-resistance Sensor Circuit Transmitter Board;
HART communication protocol; 3051 Shell with a dot-matrix display screen. |
| H3051T4 | Universal Bridge-resistance Sensor Circuit Transmitter Board;
HART communication protocol; 3051 Shell with a dot-matrix display screen. |
||
| Electronic Remote Transmitter Board | HART | H3051TERS | Electronic Remote Transmission;
replacing the double-flange transmitter Board. |
