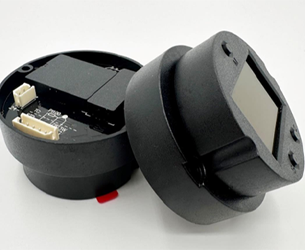

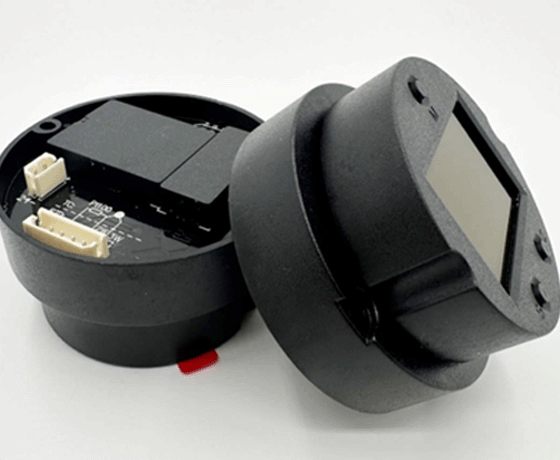

Additionally, the H3051WD module is capable of measuring millivolt signals and resistance signals, ensuring a versatile solution for various temperature measurement scenarios. The module features an isolation voltage of DC1000V, providing reliable electrical isolation for safety and performance in demanding industrial environments.
Parameters
Product Advantages
High-Voltage Isolation: The device provides up to 1000V isolation between the metal capacitance sensor processing circuit and the main circuit for enhanced safety.
Micro-Differential Pressure Technology: Utilizes advanced DDS technology for accurate low-pressure measurements, such as 2kPa.
Large Range Turndown: Designed for versatile pressure measurement across a broad spectrum.
Anti-Disturbance Capability: Equipped with military-grade anti-disturbance features, including over-voltage, surge, electrostatic, and lightning protection.
Field Adjustment Functions: Offers adjustable settings for range, PV unit, damping, transfer function, zero trim, sensor trim, and data restoration.
Linearity and Temperature Compensation: Customizable temperature and pressure compensation points for precise control.
Rotatable LCD Display: Features a 360° rotatable LCD for ease of viewing in any orientation.
Multiple Variables Display: Displays multiple variables with a backlight for visibility in low-light conditions.
Data Backup and Restore: Facilitates data preservation and recovery to prevent data loss.
Installation and Reliability: Features a user-friendly design for easy installation and dependable operation
Technical Specifications
Output Signal: A 4-20mA output signal superimposed with HART protocol digital communication (two-wire system), where HART communication does not affect the 4-20mA analog output;
Remote Management: Capable of being remotely managed via handheld devices and PC configuration and tuning software;
HART-CONFIG Configuration/Tuning Software: Employs a tiered menu approach for configuring, troubleshooting, maintaining, and calibrating transmitter boards.
Stability: 0.01°C (RTD), 0.1°C (E, J, K, N, T), 0.2°C (B, R, S).
Accuracy: 0.1°C (RTD0), 0.5°C (E, J, K, N, T), 1.0°C (B, R, S).
Cold Junction Compensation: Software-selectable between disabled, internal, or external (requires external PT100 for external compensation).
Damping: Adjustable from 0 to 32 seconds.
Data Refresh Rate: 2 Hz.
Stability: ±0.2% per year.
Operating Temperature: -40°C to +85°C (LCD: -20°C to +70°C).
Dimensions: Diameter 60mm.
Mounting Hole Spacing: Diameter 55mm.
Vibration Resistance: 10-60Hz, 0.21mm sine wave.
RFI Resistance: IEC61000-4-3, 20V/M, 80-1000MHz.

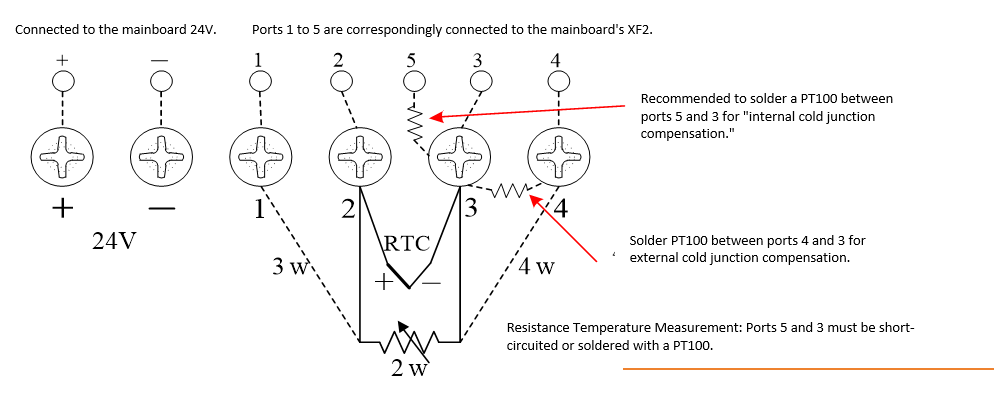

Wiring Diagram
The variables displayed on the LCD and the number of decimal places can be set through the configuration software.
The LCD supports the display of two variables, which include current, primary variable percentage, and primary variable. Each variable can be independently configured to display decimal points at positions: 0, 1, 2, or 3.
If the two display variables are different, the LCD will alternate between the set variables at intervals of 3 seconds.
 |
 |

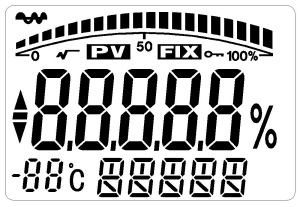

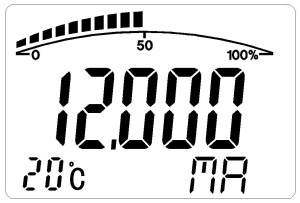

| Full-brightness display diagram of the LCD | Current Display |
 |
 |

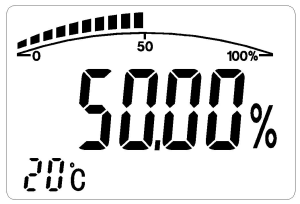

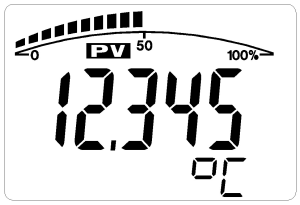

| Primary Variable Percentage Display | Primary Variable Display |
Ordering Information
| Product Type | Part No. | Description | |
| Temperature Transmitter Board | DVRT | D148D | Economical Temperature Transmitter Board;
PT100 three -wire; DVRT communication protocol; Junction box installation. |
| D248WD | Isolated Temperature Transmitter Board;
RTD + TC various sensor type inputs; DVRT communication protocol, junction box installation. |
||
| HART | H648WD | Isolated Temperature Transmitter Board;
RTD + TC various sensors input; HART communication protocol; junction box installation. |
|
| H649WD | Isolated Temperature Transmitter Board;
RTD + TC various sensors input; HART communication protocol; DN rail installation. |
||
| H3051WD | Isolated Temperature Transmitter Board;
RTD + TC various sensors input; HART communication protocol; 3051 shell with a display screen. |
||
